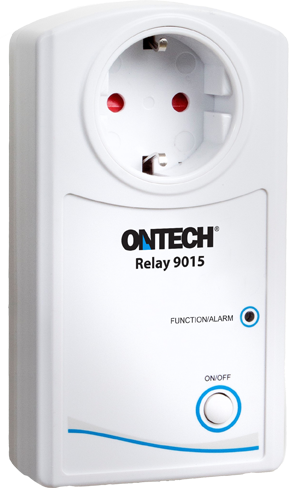

Ontech Relay 9015

The Ontech Relay 9015 is an accessory to the main units Ontech GSM 9025 and Ontech GSM 9035. For indoor usage only. Ontech Relay 9015 is an extra relay with two alarm inputs and temperature elements. The unit can remotely control a 230V socket, an alarm unit, temperature alarm and thermostat.



Functions


The unit communicates with the main unit with a short range- radio on the frequency 2.4 GHz. Up to 7 Ontech GSM Relay can be connected and controlled individually to every main unit.

The unit has a 230V socket that you can turn on and off through the main unit. This function can be used to turn on and off different types of devices such as radiators, pumps, etc. You can also set a delay which can vary between 1 second and 99 hours.

The unit contains an internal temperature sensor. An external temperature sensor can be connected as well. This is an extra accessory and is not included. At request the unit will report the temperature.

The unit can be set to alarm if the temperature goes below or above a set degree. This can be combined with the Auto relay function so that the 230V socket will turn on or off if the unit alarms.

The unit can be used as a thermostat if a radiator is connected to the 230V socket.

The unit has two wired alarms. These can be set to alarm at a closing (Normally Open, NO) or a breaking (Normally Closed, NC) function. It is possible to connect different alarms such as fire alarms, motion detectors, liquid level switch, etc.

Easy to install. Connect the unit to a wall socket and it will connect automatically to the main unit and register to the Ontech system.

The units reach is 30 meters in open field. This is often enough for a normal sized home. The unit also works as a repeater, which means that it will redirect the radio signal to the main unit from units further away. This will increase the systems reach.


Specifications


Temperature area: -40 to + 55 degrees Celsius.

Oulet: 230V/ 16A. One branch- breaking.

Power nominally < 0.5W, maximum 4W.

Two alarm inputs 3- 30 VDC. Can be set to Normally Open or Normally Closed.

Internal temp sensor +/ -2 degrees at 25 degrees Celsius and the relay deactivated.

Short range- radio 2.4 GHz. Out effect 1 mW.

Output for an external temp sensor or adapter to measure current (4-20 mA).

Total weight 180 gram, cabinet measured 135*73*35 mm.
